SINOPEC 126 DRILLING RIG SPECIFICATIONS (ZJ50D RIG) - SINOPEC

SINOPEC 126
DRILLING RIG SPECIFICATIONS
(ZJ50D RIG)

1- SECTION A: SUBSTRUCTURE, MAST AND ACCESORIES

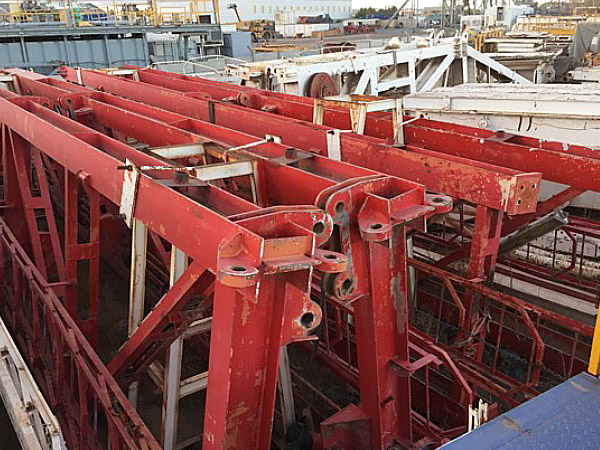

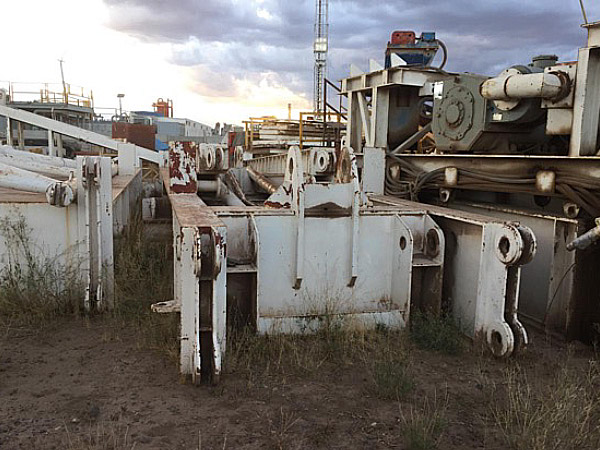

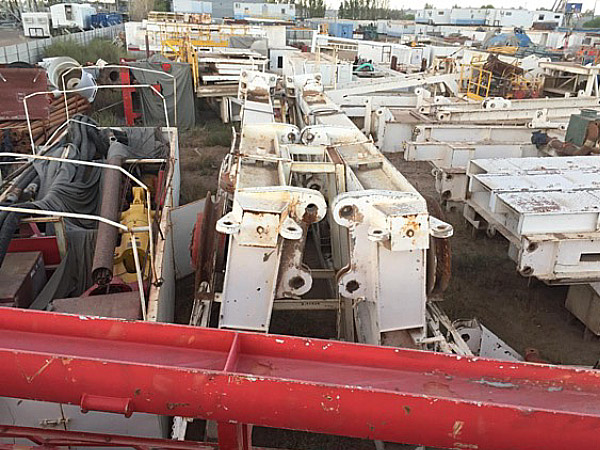

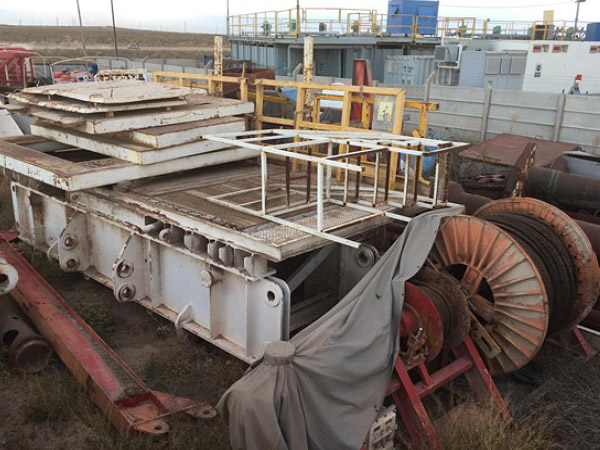

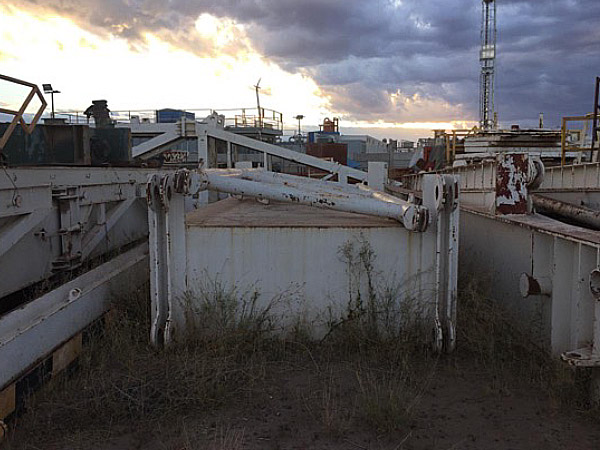

A.1 SUBSTRUCTURE
Fabricator: Shengli Gaoyuan Oilfield Machinery
Type: DZ450/9-X
Substructure Height: 9m
Substructure Width: 13.7m×12.1 m
Maximum Setback Load: 2200kN
Maximum Rotary Load: 5850kN

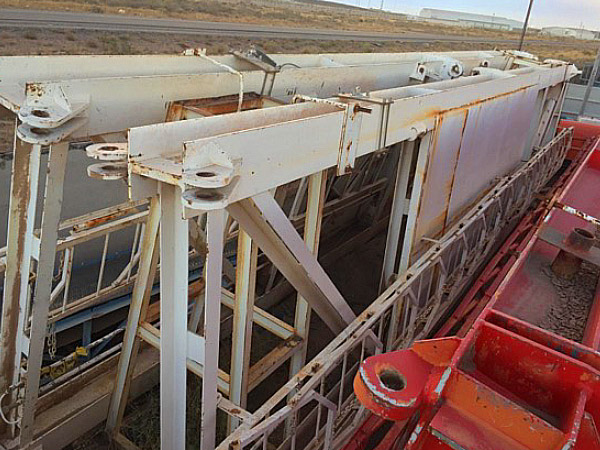

A.2 MAST
Make: Shengli Gaoyuan Oilfield Machinery
Type: JJ315/45-K
Dimensions: Height from Ground Level 45m
Static Hook Capacity: 4500 kN
No of lines: 12
Mast Racking Capacity: 5000 m of DP 5″
Bumper Blocks under Crown: Yes

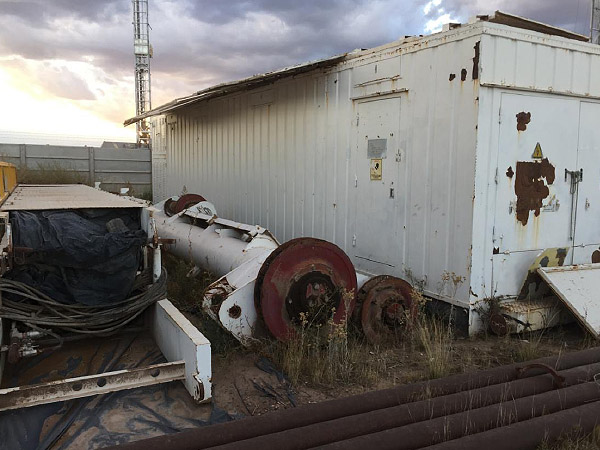

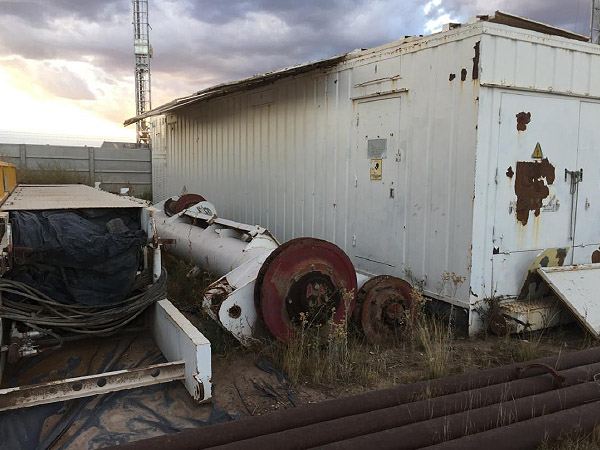

A.3 CROWN BLOCK
Make: Shengli Gaoyuan Oilfield Machinery
Model: TC315
Rating: 3150 kN
Description: 7 Sheaves
.

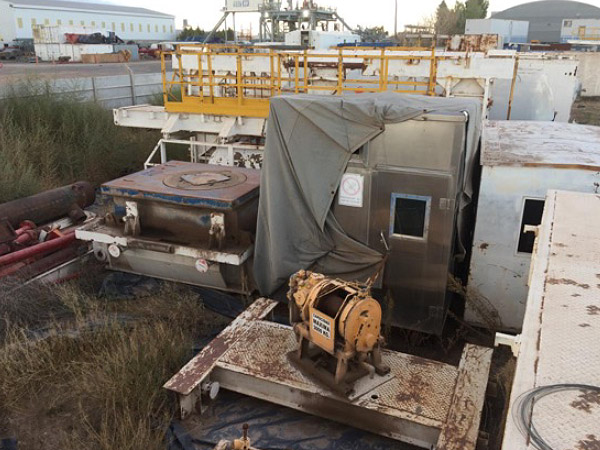

A.4 TUGGER HYD WINCH
Make: Taian Juling Drilling and Exploring Equipment CO.,LTD
Model: XJFH-5/35L
Rating: 50kN
Number: 3

A.5 BOOM LINE HYD WINCH
Make: N/A
Model: N/A
Rating: N/A
Number: N/A

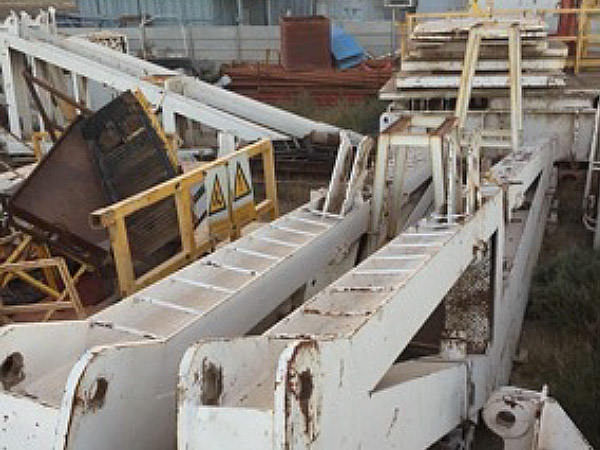

A.6 MAST ACCESSORIES
Description: have monkey-board, casing stabbing board, Ladders, etc.

2- SECTION B: HOISTING AND ROTARY EQUIPMENT

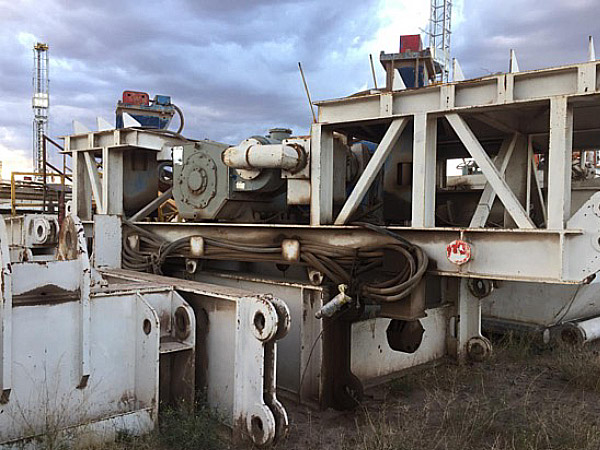

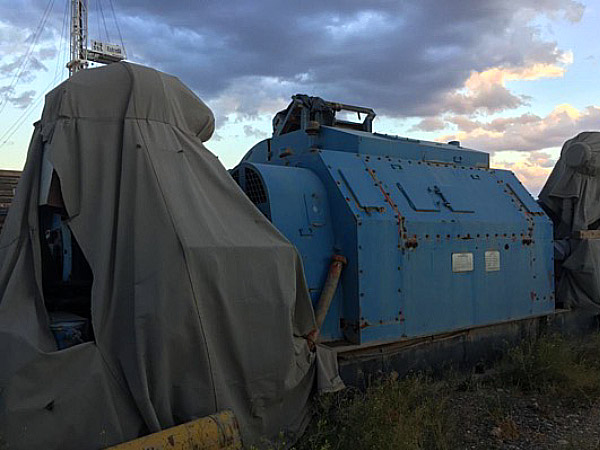

B.1 1000 – 1500 HP DRAWWORKS
Make: Shengli Gaoyuan Oilfield Machinery
Model: JC-50D
Rated Capacity: 1500HP
Rated Maximum Line Pull: 340kN
Drill Line Drum: ￠770×1,310mm
Auxiliary Brake: DWS50 Electromagnetism eddy current brake
Engine: 2×1088HP DC motor
Transmission: Electric move:AC-SCR-DC

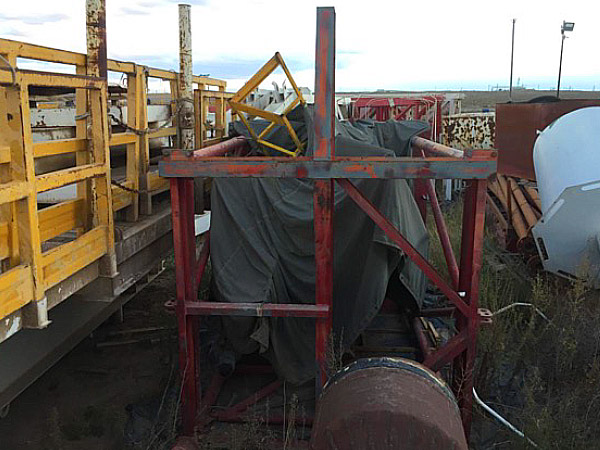

B.2 DRILLING LINE
Description: 1 3/8 inch

B.3 TOP DRIVE
Make: Beijing Petroleum Machinery Factory
Model: DQ70BSC
Load Rating: 4500 kN
Max Drill Torque: 36900 ft.lb
Swivel: Power swivel
Style: DQ70BSC

B.4 BAILS
Make: Shengli Gaoyuan Oilfield Machinery
Size: 3048mm/4600mm
Capacity: 3500kN /5000kN
Number: 2

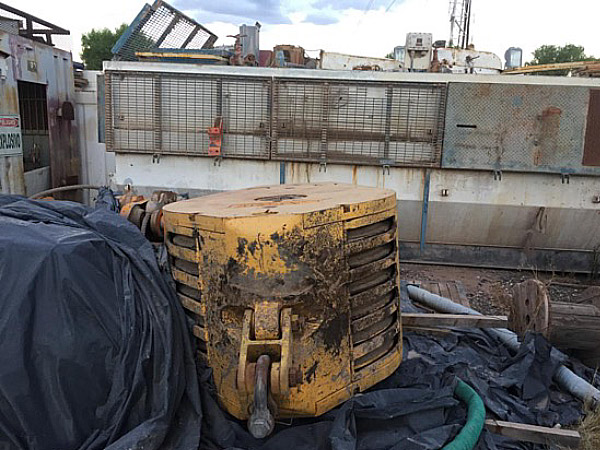

B.5 TRAVELLING ASSEMBLY
Travelling Block Make: LanZou Petroleum&Chemical Machinery workshop
Model: YC315
Capacity: 3150 kN

Hook Make: LanZou Petroleum&Chemical Machinery workshop
Model: DG315
Capacity: 3150 kN

Swivel Make: LanZou Petroleum&Chemical Machinery workshop
Model: SL450
Capacity: 4500 kN

B.6 27 ½” ROTARY TABLE
Make: Shengli Gaoyuan Oilfield Machinery
Model: ZP375
Size: 37 1/2 inch
Static Load Capacity: 5850kN

B.7 MASTER ROTARY BUSHINGS
Make: JiangShu RuSI Machinery Co. Ltd
Model: 20” 11 3/4”-13 3/8” 9 5/5”-103/4’ 2 3/8”-8 5/8”
Type: It’s be split

SECTION C: PUMPING AND HIGH PRESSURE DISCHARGE SYSTEM

C.1 1300 – 1600 HP MUD PUMP
Make: Baoji Oilfield Machinery
Model: F-1600
Number: 1
Engine: 2×1088 HP motor
Gearbox Yes
Maximum input hp per Pump: 1600 HP each
Liner Sizes Available: 140, 150, 170, 180 mm
Pulsation Dampener: KB-75
Reset Relief Valve: JA-3
Suction Strainer: Yes
Discharge Strainer: Yes
Suction Pulsation Dampeners: Yes
Note:

C.2 MUD CHARGING PUMP
Make: GuangaHan Western Petroleum Exploring Co.Ltd
Model: SB6X8FJ-13
Size: 13 inch
Number: 1
Location: Beside of the suction line
Drive: Motor /75HP

C.3 HIGH PRESSURE MUD LINES
Pipe Grade: E
Discharge Line: 4 inch
Rated Working Pressure: 5000 psi

C.4 STANDPIPE MANIFOLD
Pipe Grade: E
Rated Working Pressure: 5000psi
Number: 1 set
Valves:
Connections: Union
Pressure Gauges: 0-8571 psi
Standpipes: Dual

Rotary Hose: 2

3- SECTION D: LOW PRESSURE MUD SYSTEM

4- D.1 MUD MIXING
Type:
Hoppers: 3
Location: Two on the top of the mud tank 4, one beside of the mud tank 4.

5- D.2 MIX PUMPS
Make: GuangaHan Western Petroleum Exploring Co.Ltd
Model: SB6X8J-13
Size: 13 inch
Number: 3
Location: Under the mud tank 4
Drive: 3 Motor, 75HP each

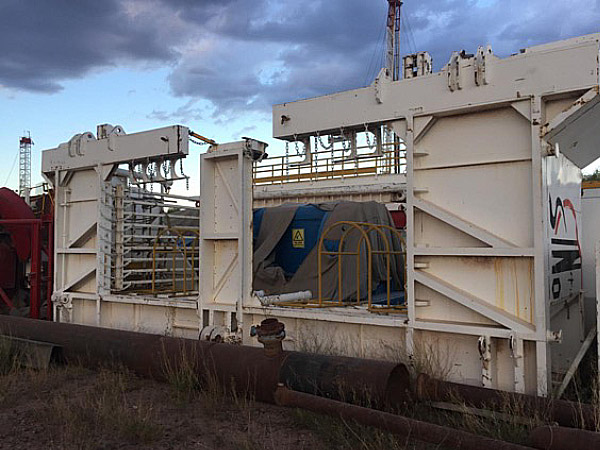

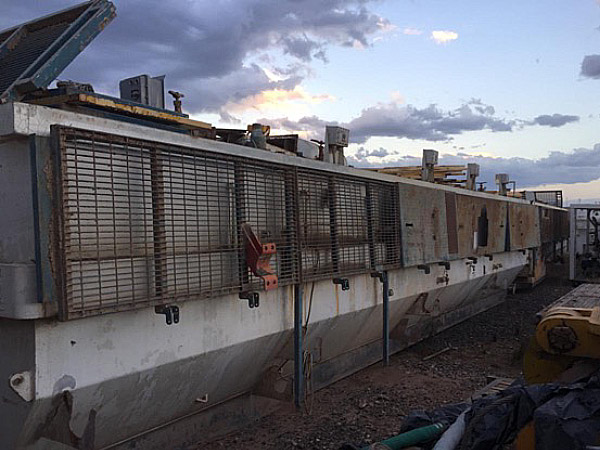

6- D.3 ACTIVE MUD TANK
Total Combined Volume: 400m3

D.4 AGITATORS
Quantity: 16
Make: Lida machinery Plant
Type: NJ-15
Drive: Motor: 20HP each
Locations: O n the top of the mud tank.

7- D.5 DRILL WATER TANK
Capacity: 200m3
Number: 4
Location: Beside of the mud tank.

8- D.6 TRIP TANK
Type:
Capacity: 10m3
Incremental Volume Yes
Level Indicator: Yes

9- D.7 TRIP TANK PUMP PACKAGE
Make: GuangaHan Western Petroleum Exploring Co.Ltd
Size: SB3X4J-9
Drive: Motor, 15HP
Number: 1

10- D.8 CHEMICAL MIXING BARREL
Quantity: 1

11- D.9 SHALE SHAKERS
Make: DERRICK /America
Model: FLC2000
Number: 3

12- D.10 3 IN 1 MUD CLEANER
Make: DERRICK /America
Model: FLC2000
Type: Liner
Number: 1

13- D.11 VACUUM DEGASSER
Make: Xiaan Petroleum Drilling & Production Equipment Co. Ltd
Model: ZCQ300
Capacity: 300m3/h

14- D.12 MUD GAS SEPARATOR – ATMOSPHERIC
Type: NQF120×4.0
Size: OD 1.2m, height 4.0m
Outlet Size: 1.2m
Location: Beside of the mud tank 1.
Description:

15- D.13 CELLAR PUMP
Make: Lida machinery Plant
Model: Power: 20HP
Size:

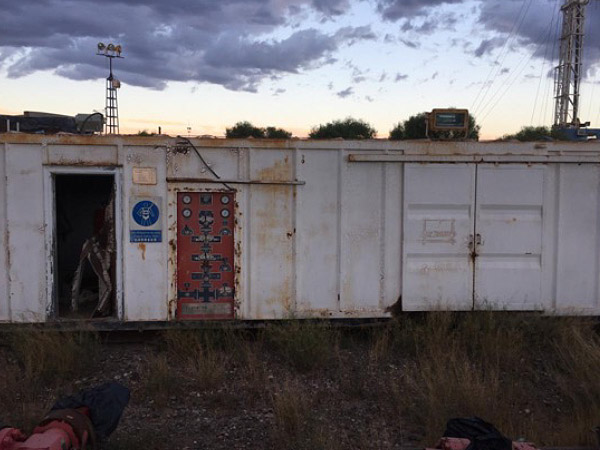

16- SECTION E: PRIME MOVERS AND TRANSMISSION

17- E.1 DIESEL GENSET ENGINES
Make: CATERPILLAR
Model : CAT3512B
Number: 3

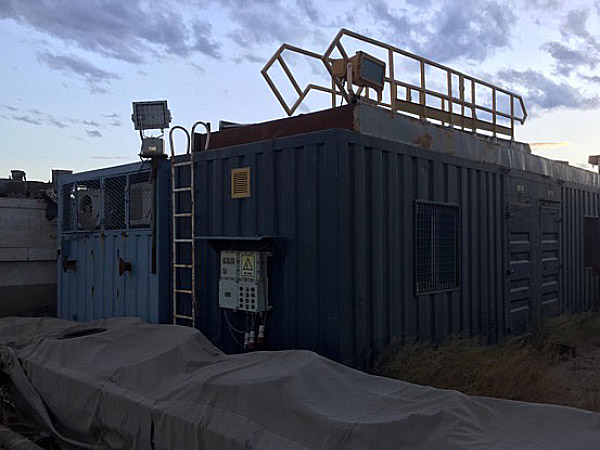

18- E.2 GENERATORS
Make: CATERPILLAR
Model: SR4
Number: 3
Rating: 1900KVA

19- SECTION F: AUXILIARIES

20- F.1 WIRELINE UNIT
Make: Taian Juling Drilling And Exploiting Equipment CO.,LTD
Model: CJ5000(F)
Wire Size: 0.092 inch
Length: 5000m

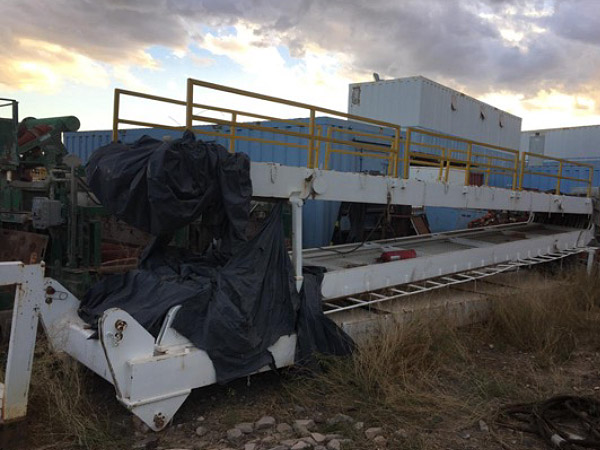

21- F.2 CATWALK
Description: 1 set
V Door Yes
Pipe Range:

22- F.3 PIPE RACKS/ PIPE TUBS
Pipe Rack: Yes
Number: 1 set
Pipe Tub Capacity: 5000 m 5 inch DP
Number:

23- SECTION G: BLOWOUT PREVENTION AND WELL CONTROL EQUlPMENT

24- G.1 ANNULAR BOP
Make: HBRS
Model: FH35-70
Pressure rating: 10000PSI
Top Connection: BOLT
Bottom Connection: flange

25- G.2 RAM TYPE PREVENTERS
26- G.2.1 RAM SINGLE GATE PREVENTERS
Make: HBRS

Model: FZ35-70
Style:
Number: 1
Pressure rating: 10000PSI
Top Connection: BOLT
Bottom Connection: flange
Outlets: yes

27- G.2.2 RAM DOUBLE GATE PREVENTERS
Make: HBRS

Model: 2FZ35-70
Style:
Number: 1
Pressure rating: 10000PSI
Top Connection: BOLT
Bottom Connection: flange
Outlets: yes

28- G.2.3 RAMS
Make: HBRS

Size: 9 5/8” , 7” , 5” , BLIND RAM

29- G.3 KILL LINE
Kill Line: yes
Kill Line Valve: yes
Kill Line Check Valve: yes

30- G.4 CHOKE LINE
Choke Line: yes
Choke Line Valve: yes
Choke Line HCR: yes

G.5 PRESSURE UNIT AND CONTROL (ACCUMULATOR)
Make: BEIJING PETROLEUM MACHINETY CO.
Model: FKQ640-7
Accumulator pressure: 31.5
No. of Accumulator bottles: 8
No of Electric Pumps: 1
No of Air Pumps: 2
Control Locations: 7

31- G.6 CHOKE MANIFOLD
Make: CHENGDE KINGDREAM PETROLEUM MACHINERY
CO.,LTD
Pressure Rating: 10000PSI
Manual Choke: HYDRAULIC AND MANUAL

32- G.7 STABBING VALVE
Make: MUDANJIANG PETROLEUM TOOLS CO.,LTD
Model: 10000PSI
Connections: 4 1/2”
Number: 2

33- G.9 IBOP VALVE
Make: Beijing Petroleum Machinery Factory
Model: 5000psi
Connections: 6 5/8” API REG box~pin
Number: 2

34- G.10 BOP HANDLING DEVICE
Type: FY-50Y
Lifting Capacity: 500kN
Number: 1 set

35- SECTION H: RIG FLOOR EQUIPMENT

36- H.1 ROTARY TONGUES
Make: JIANGSU RUDONG GENERAL MACHINERY CO.,LTD
Model: Q3.1/2-17”/90
Jaw range for DP, DC .1/2-17”/90
Jaw range for Casing .1/2-17”/90

37- H.2 DRILL STRING ELEVATORS
Model: DDZ-5″»×350T\18°
Make: JIANGSU RUDONG GENERAL MACHINERY CO.,LTD
Type: 5″»×350T\18°
Capacity: 350T
Number: 4
Inserts:

38- H.3 DRILL PIPE SLIPS
Make: TAIXIN PETROLEUM MACHINERY CO.,LTD
Model: SDXL5″
Size: 5”
Number: 3

39- H.4 DRILL COLLAR SLIPS
Make: TAIXIN PETROLEUM MACHINERY CO.,LTD
Model: DCS-R5 1/2″-7″
DCS-L8″-9 1/2″
Size: 5 1/2″-7″, 8″-9 1/2″
Number: 3 , 2

40- H.5 SAFETY CLAMP
Make: TAIXIN PETROLEUM MACHINERY CO.,LTD
Model: WA-C3 1/2″-10 5/8″
Size 3 1/2″-10 5/8″
Number 6

41- H.7 MUD BUCKET
Make: JAINGSU RUSHI MACHINERY CO.,LTD.
Sizes: 5”
Number: 1

42- H.8 POWER SLIPS
Make: N/A
Model: N/A
Style: N/A

43- H.9 TORQUE WRENCH
Model: ZQ203-125
Make: JiangShu RuSI Machinery Co. Ltd
Pipe Range: 3 1/2” ~ 8”
Tool Joint Height: 420mm
Make-Up Torque: Max:125,000N.m
Break-Out Torque: Max:125,000N.m

44- SECTlON I: DRILL STRINGS
45- I.1 DRILL PIPES
Total Length: 4000M
OD, wt/ft, Range, Grade: 5”
Connection: 4 1/2”IF
Thread Protectors: yes

46- I.2 DP PUP JOINTS
OD: 5”
Tool Joint Thread: 4 1/2”IF
Number: 6

47- I.3 HEAVY WEIGHT DRILL PIPES
No. of Joints: 20
OD, Range: 5”
Connection : 4 1/2”IF
Thread Protectors: yes

48- I.4 DRILL COLLARS
OD: 9 1/2” , 8” , 6 1/2”
ID: 74MM
Length: 45m ， 190m ， 230m
Connection: 7 5/8” REG , 6 5/8”REG , 4 1/2”IF
Number: 3 , 20 , 24
Spiral Grooved: yes
Slip Recess: yes
Elevator Recess:
Thread Protectors: yes

49- I.5 BIT SUBS (Bored for Float)
Sizes: 7 5/8” REG , 6 5/8”REG , 4 1/2”REG

50- I.6 CROSS-OVERS
Sizes:
φ165(411×410)
631×631（LEFT HAND）*914mm
630×631（LEFT HAND）*914mm
730×730*914mm
730×630*914mm
731×630*914mm
730×631*914mm
630×630*914mm
631×631*914mm
631×410*914mm
411×630*914mm
411×4A10*610mm
410×4A11*610mm
430×410*610mm
411×410*610mm
411×411*610mm

I.7 FLOAT VALVES
Make: MUDANJIANG PETROLEUM TOOLS CO.,LTD
Model: 430×410*610mm
630×630*914mm
730×630*914mm
730×730*914mm

Number: INDIVIDUALLY 2

51- I.8 CASING SUBS
Sizes:

52- I.9 LIFTING CAPS
Sizes: 7 5/8” REG , 6 5/8”REG , 4 1/2”IF 4 1/2”REG

53- I.10 CEMENTING SUB
Sizes:

54- I.11 PICKUP SUBS
Sizes: 7 5/8” REG , 6 5/8”REG , 4 1/2”IF

55- SECTION J: RIG INSTRUMENTATION

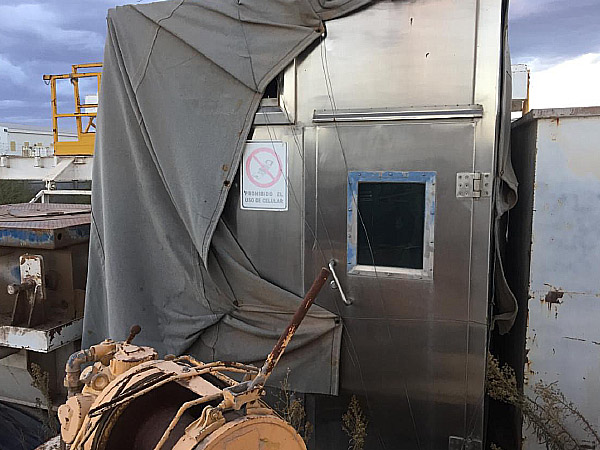

56- J.1 DRILLER’S CONSOLE
Panel Construction: Yes
Includes:

57- J.2 WEIGHT INDICATOR
Make: Jianghan Petroleum Instruments LLC
Model: JZ420

58- J.3 MUD PRESSURE GAUGE
Make: Baoji Oilfield Machinery
Model:
Range: 0-8571 psi
Number: One each of mud pump

59- J.4 TONG TORQUE INDICATOR
Make: Jianghan Petroleum Instruments LLC
Type: SZJ
Capacity: 0- 40Mpa
Number: 1

60- J.5 ROTARY TORQUE INDICATOR
Make: Jianghan Petroleum Instruments LLC
Model:
Range 0- 40Mpa

J.6 ROTARY (RPM)
Make: Beijing Petroleum Machinery Factory
Description: 0-300 rpm
Number: 1

J.7 PUMP (SPM)
Make: Jianghan Petroleum Instruments LLC
Description: SZJ
Number: 3

J.8 MUD WATCH SYSTEM
Make: Zizhong, Sichuan

J.9 MUD FLOW LINE
Make: Jianghan Petroleum Instruments LLC

J.10 DRILLING RECORDER
Make: Jianghan Petroleum Instruments LLC

J.11 DEVIATION SURVEY EQUIPMENT
Make: Hekang, Beijing
Range: 0-20 degree units

SECTION K: SAFETY EQUIPMENT

K.1 CHEMICAL HAZARD FACILITIES
Eye Wash Facilities: Yes
Number and Locations: 2; Dog house on the drillfloor and mud house

K.2 FIRE EXTINGUISHERS
(Purchased as per Regulations)
CO2:
Large Powder: 8kg twelve
Small Powder: 5kg two （Refer to Industry Standards of SY5974-2007）
Fire Fighting Water Supply: Fresh water tank

K.3 FIRE DETECTION SYSTEM
Description: 1. smoke detector；2. Portable flammable gas detector
Number and Location:1. One each；2. Two at the wellsite

K.4 PORTABLE H2S GAS DETECTOR
Make: RAE KLH, China
Model: (0–100): PGM-1700; (0—1000): PGM-1120
K.5 FIRST AID EQUIPMENT
Stretchers: one
Sterilized Burn sheets: one
First Aid Supplies: first-aid case, stretcher, oxygen bottle

K.6 WARNING SIGNS
Description: Set in the marked place where near the target；fixed strongly；size is 40cm*50cm

K.7 SELF-CONTAINED BREATHING APPARATUS
Make: RAE KLH, China
Model: RI-90U
Number of masks and regulators: twenty-three
Number of Bottles: twenty-eight
Escape Apparatus:

SECTION L: UTILITIES

L.1 AIR COMPRESSORS
Make: SULLIAR Asia Limited
Model: LS12-50HH
Number: 2
Flow Rate Capacity: 5.5m3/min
Location: Located in the air source house

L.2 AIR RECEIVER
Make: Shengli Gaoyuan Oilfield Machinery
Number: 4

L.3 INTRA-RIG COMMUNICATION SYSTEM
Make: Shengli Gaoyuan Oilfield Machinery
Zone rating: 0~30
Positions Located: Driller’s console, rig manager officer, drawworks, mud
pump, mud tank, tool pusher office, etc.
No of Stations: 1

L.4 TALKBACK SYSTEM
Make: Shengli Gaoyuan Oilfield Machineryy
Location: tool pusher office
No of Stations: 1

L.6 FRONT END LOADER
Make: It will be rented at the local as required.
Model:
Description:
Special Features:
Number: 1

L.7 WATER PUMPS
Type: SB3×4J-9
Size: 9 inch
Motor: 15HP
Number: 2

L.8 PRESSURE WASHER
Make: Shanghai China
Model: C13/180
Capacity: 780litre/h
Number: 2
Locations: Mud tank area

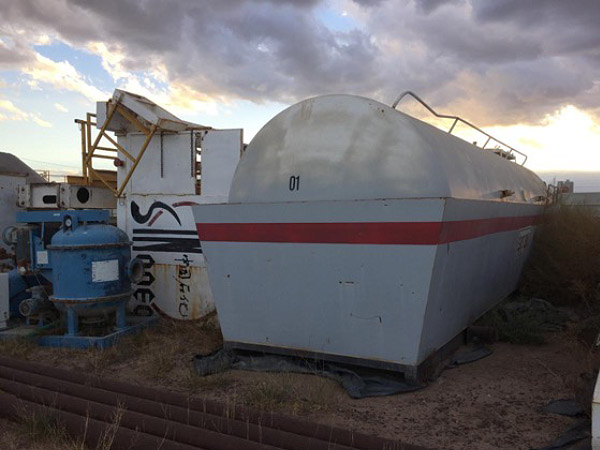

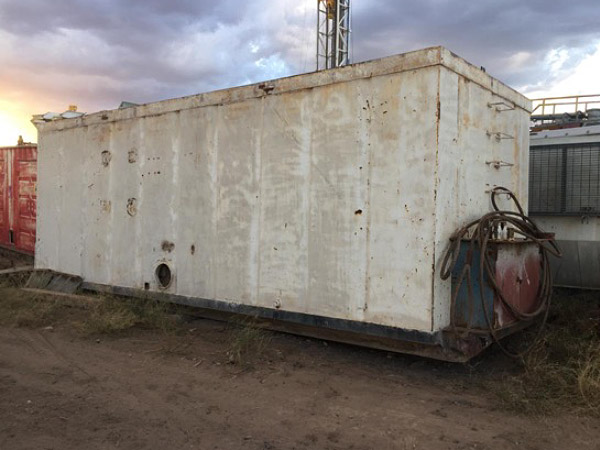

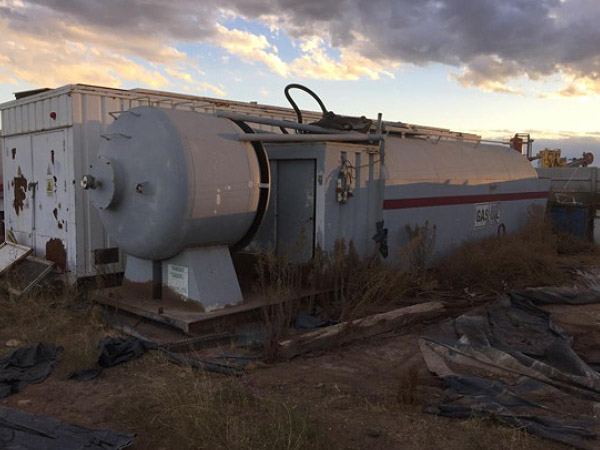

L.9 FUEL SYSTEM
Quantity: 1 set
Capacity: 95m3
Description: Two fuel tanks, 35 m3+60m3

L.10 WATER WELL PUMP & 1000m water pipe
Quantity: 1 set
Capacity: 50m3/h
Description: 1000m water pipe
Pipe diameter: 3 inch
